Machine downtime from worn parts is costly. This constant replacement cycle eats into profits and causes production headaches. The right material can solve this problem for good.
Stellite components are the answer. These cobalt-based alloys provide extreme resistance to wear, corrosion, and heat. They dramatically extend the life of critical parts in plastic extruders and injection molding machines, especially when processing abrasive materials.
I’ve spent years helping companies solve wear problems in their machinery. The issues almost always come down to a few key components. Let’s look at the biggest culprits and see how a simple material change makes all the difference. This will help you keep your production line running longer and more efficiently.

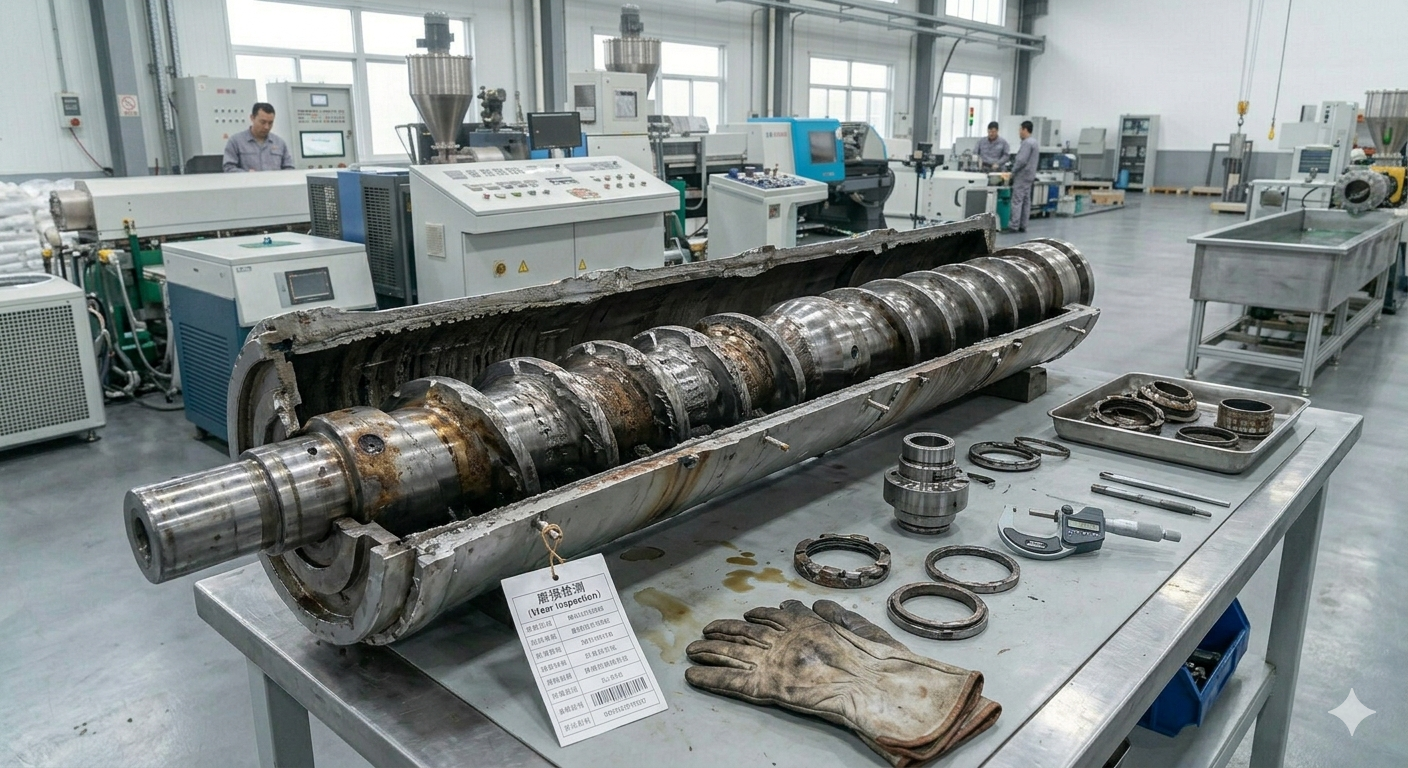

Why Do Your Extruder Screws and Barrels Wear Out So Fast?
Are you constantly replacing screws and barrels? The downtime and cost are frustrating. The problem isn’t your machine’s fault; it is the material these core parts are made from.
Screws and barrels wear quickly from abrasive fillers, like glass fiber, in modern plastics. These fillers grind away at standard steel, causing grooves that lead to poor plasticizing, lower output, and frequent product defects.
Screws and barrels are the heart of your extruder. They are responsible for moving, melting, and mixing the plastic. But when you add reinforcing materials like glass fiber or mineral fillers, they act like sandpaper against the metal surfaces. I have seen many cases where standard nitrided steel or bimetallic screws get deep grooves and wear out very quickly. This leads to bad plastic quality, lower production rates, and more defective products. Stellite alloys are the ideal solution here. They are built to handle these tough, abrasive conditions.
Choosing the Right Stellite Alloy
Not all Stellite is the same. You need to pick the right one for your specific job.
| Alloy | Key Feature | Best For |
|---|---|---|
| Stellite 20 | Better Toughness | Long, continuous production runs with moderate wear. |
| Stellite 3 | Higher Hardness | Extreme wear conditions with highly abrasive materials. |
From my experience, a client processing PA66 with 30% glass fiber saw their Stellite alloy screw and barrel last 4 to 6 times longer than their old nitrided steel parts. This significantly reduced their downtime and maintenance costs.
Are Worn ‘Small Parts’ Hurting Your Injection Molding Precision?
Is your injection molding machine producing inconsistent parts? You have checked everything, but the scrap rate is still high. The problem could be three tiny, overlooked components.
Yes. A worn nozzle tip, check ring, and seat—the “three small parts”—cause melt leakage and poor injection control. Upgrading these parts to Stellite 3 alloy prevents this wear, restores injection precision, and improves overall product quality.

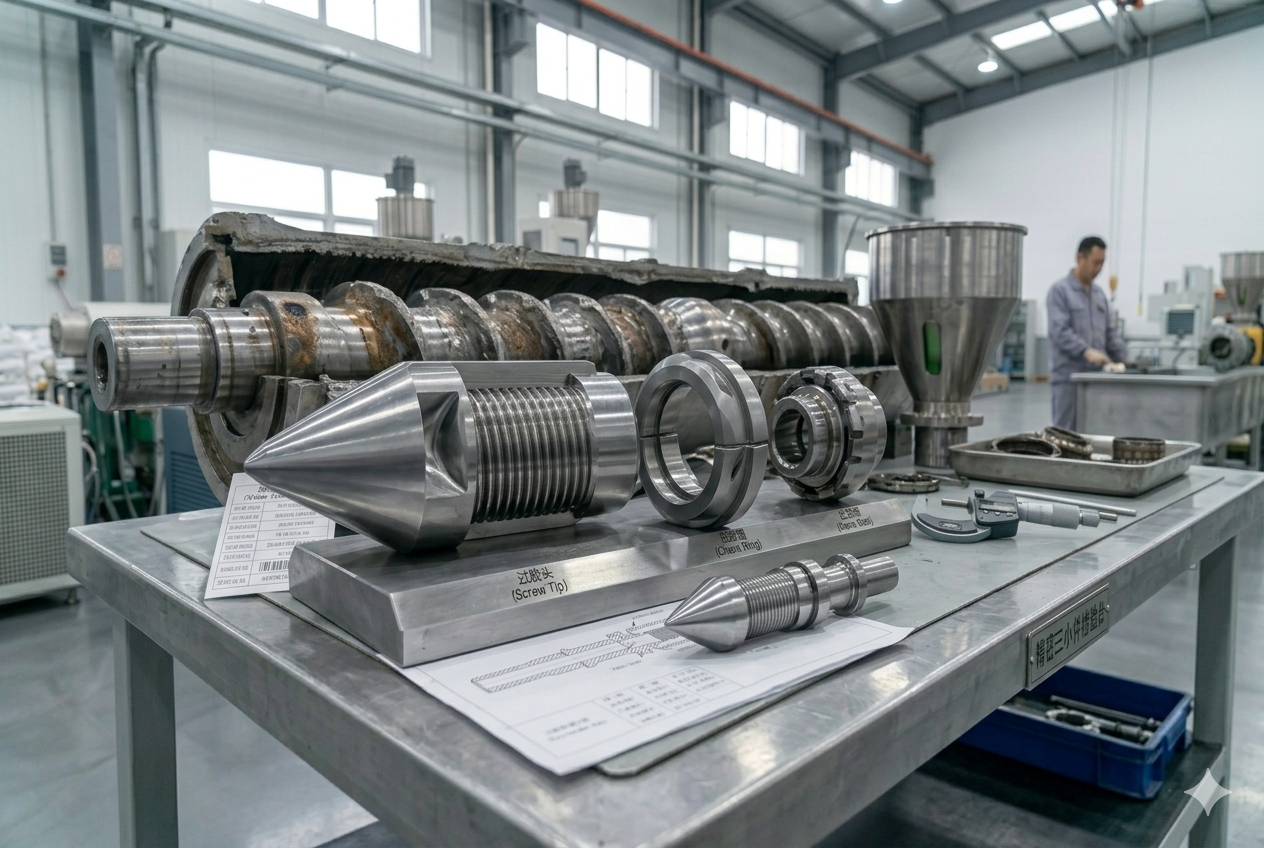

At the front end of the injection machine’s barrel, there are three precision components: the nozzle tip, the check ring, and the seat. I often call them the “three small parts.” They may be small, but they directly control your injection accuracy and product quality by managing the flow of molten plastic. When these parts wear out, you get inconsistent shots and material leakage, which ruins precision. Using parts made from or coated with Stellite 3 alloy increases their impact wear resistance by 3 to 5 times.
How Stellite Improves Each Part
This simple upgrade makes a huge difference in performance.
- Nozzle Tip: This part guides the molten plastic. A Stellite 3 tip has high hardness and a low friction coefficient. This keeps the surface smooth for a long time and reduces flow resistance.
- Check Ring: This part acts as a seal. Stellite 3 is very resistant to corrosion and heat fatigue. This ensures the ring keeps its size and shape, preventing plastic from leaking backward.
- Seat: This part takes a high-pressure impact during injection. The unique combination of toughness and hardness in Stellite 3 prevents it from chipping or deforming under pressure.
Clients who made this switch found that when processing tough materials like PA66 with 30% glass fiber, the replacement cycle for these three parts was extended 3 to 5 times. Their injection precision stayed within ±0.01mm, and their scrap rate dropped significantly.
Conclusion
Upgrading to Stellite components for screws, barrels, and small parts reduces wear and extends service life. This improves quality, lowers costs, and keeps your plastic machinery running smoothly.
